Details of 11+1+1µm Carbon-Coated Aluminum Foil
1. Technical Parameters
| Applicable Battery | Lithium- ion battery / Sodium-ion battery |
| Alloy | AA1100, AA1060, AA1235D |
| Temper | H18 |
| Aluminum Foil Thickness | 8- 15 µm |
| Coating Thickness | 0.6- 2 µm (single side/double sides) |
| Aluminum Foil Width | 300- 1550 mm |
| Coating System | Aqueous slurry |
| Surface Tension | ≥64 dyn/cm |
| Total Surface Density | 33.5-41.5±1 g/m² |
| Coating Surface Density | 0.21-0.7±0.5 g/m² |
| NMP Resistance | Baked at 130 °C for 10 min. Wiping 200 times with NMP, the coating remains intact without peeling. |
2. Key Benefits of 11+1+1µm Carbon-Coated Aluminum Foil
- Improve conductivity by reducing surface resistance.
- Enhance the adhesion between active material and current collector.
- Optimize battery C-rate performance.
- Bolster resistance to electrolyte corrosion.
- Extremely compatible with LFP (NCM / NCA).
3. Production Equipments
4. Quality Control
5. Packaging
We have three steps of packaging to ensure the product is delivered to the destination without any damage.
Step 1: Using EPE foam to protect the two end faces of the aluminum foil.

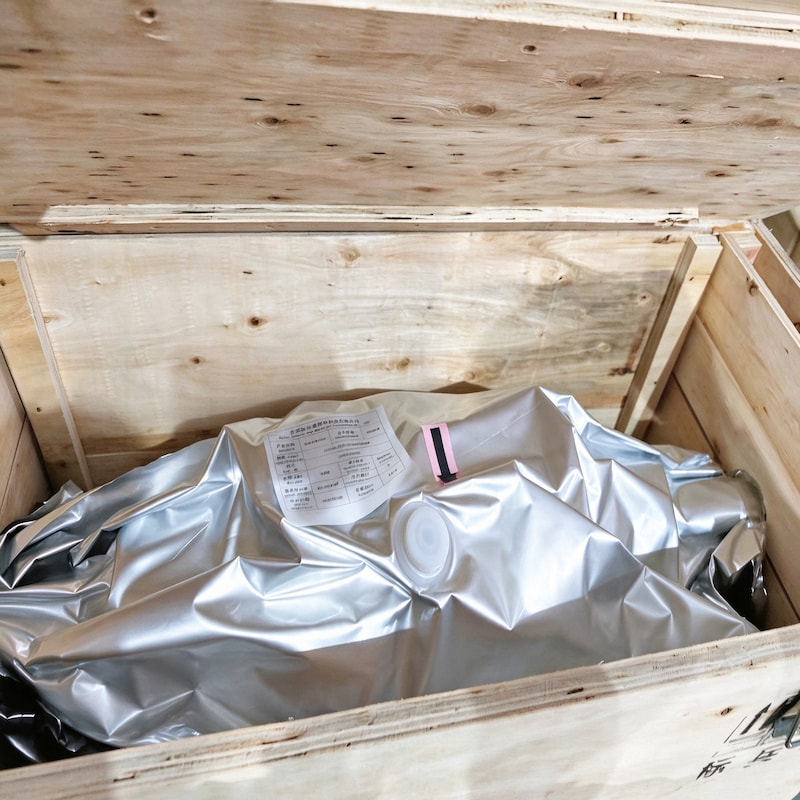

Step 2: Vacuum and package with aluminum-plastic film.

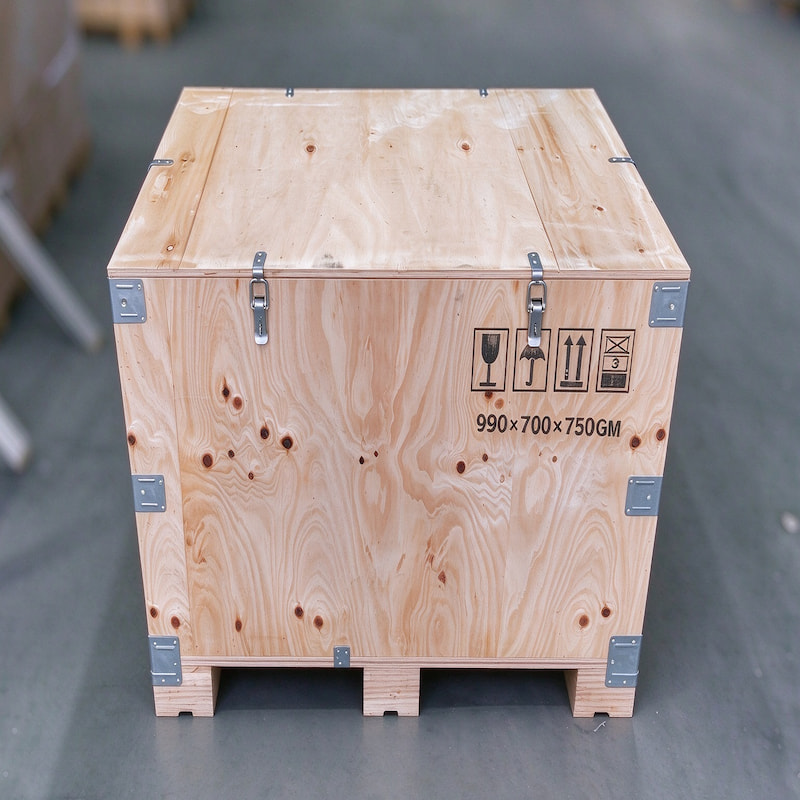

Step 3: Put it in the quick-release wooden case, which is designed for customs inspection. Label affixed on each side of the crate.
6.Q&A
a.What is the minimum order quantity?
The minimum order quantity of our carbon-coated battery aluminium foil is 5,000 kg. No matter what thickness of product it is.
b.Can you customize the packaging?
Yes, we usually use quick-release wooden boxes as outer packaging, and we also accept special-dimension requests for packaging.
c.What price do we pay for a customized sample?
It depends on your customized needs. Different coating sizes result in different quantities of waste materials; therefore, there is some discrepancy in the cost of the sample. Don't worry, all the prices are well-founded.
d.Can products with even thinner thicknesses be customized?
Yes, of course. Besides the thickness scope of 10- 15 micrometres, we have successfully developed and researched thinner versions, which are only 8- 9 micrometres. And we will continue to explore new aluminum foil products with even thinner profiles.
If you need any further information about our battery aluminum foil products, contact us now at: peng@biopin.vip or sristar0615@gmail.com.
